Heaters

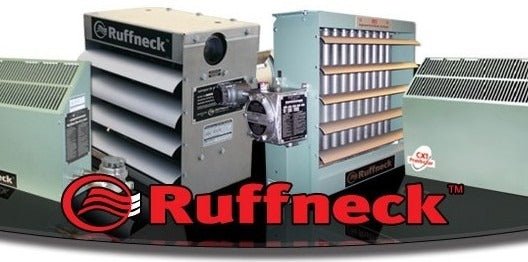

Ruffneck™ is well-known in the industry for its "ship the heat in a week" policy, where 95% of all standard orders are shipped within one week of order placement.
Ruffneck™ products are, in many cases, also highly compatible with our other product lines -- Cata-Dyne™, Caloritech™, Norseman™ and DriQuik™ -- to provide our customers with complete heating solutions for industrial and commercial applications.
CF1 - ProVector® Explosion-Proof Convection Heater
Designed and manufactured specifically for demanding requirements and harsh operating conditions such as those in the oil and gas well drilling industry, the Ruffneck™ CF1 ProVector® Explosion-Proof Convection Heater offers the most reliable, dependable and trouble-free service available for heating hazardous locations.
Features & Benefits At A Glance
- models range from 0.75-7.6kW and 220-415V
- sloped-top cabinet prevents objects that restrict airflow from being set on top
- no exposed copper or brass, limiting corrosion and making the unit suitable for H2S environments
- high-velocity airflow generates heat faster and delivers better heat distribution
- 14-gauge steel cabinet (also available in stainless steel) offers rugged reliability and unsurpassed corrosion resistance; shorter than average cabinet length saves wall and floor space
- optional built-in thermostat reduces field installation costs
- Incoloy® heating elements offer longer life expectancy
- radial-embossed aluminum plate fins reduce fin warping for better heat transfer performance
- galvanized steel mounting brackets for easy installation and removal
- CE/ATEX approved for Groups IIA, IIB & IIC CE/ATEX approved; GOST approved for global markets
CX1 - ProVector® Explosion-Proof Convection Heater
Designed and manufactured specifically for demanding requirements and harsh operating conditions such as those in the oil and gas well drilling industry, the Ruffneck™ CX1 ProVector® Explosion-Proof Convection Heater offers the most reliable, dependable and trouble-free service available for heating hazardous locations.
Features & Benefits At A Glance
- models range from 0.75-7.6kW and 120-600V
- sloped-top cabinet prevents objects that restrict airflow from being set on top
- no exposed copper or brass, limiting corrosion and making the unit suitable for H2S environments
- high-velocity airflow generates heat faster and delivers better heat distribution
- 14-gauge steel cabinet (also available in stainless steel) offers rugged reliability and unsurpassed corrosion resistance; shorter than average cabinet length saves wall and floor space
- optional built-in thermostat reduces field installation costs
- Incoloy® 840 heating elements offer longer life expectancy
- radial-embossed aluminum plate fins reduce fin warping for better heat transfer performance
- galvanized steel mounting brackets for easy installation and removal
- UL C/US listed approvals for Groups A, B, C, D, IIA, IIB and IIC; IP55 moisture ingress protection available
RXDF - Explosion-Proof Duct Heater
The Ruffneck™ RXDF Explosion-Proof Duct Heater is designed for heating air or gases in hazardous environments where potentially explosive substances are present, such as oil refineries, coal mines, petrochemical plants and sewage treatment plants. They use heavy walled carbon steel finned tubular (Calrod® Type)* elements with nickel plated finish to provide safe, efficient, low temperature heat transfer.
Features & Benefits At A Glance
- 3 standard sizes range from 2.5-50kW and 208-600V; single or double banked heating modules available
- painted steel duct with mounting holes for attachment to the duct section; approved for mounting in horizontal duct section
- patented x-Max® terminal housing for easy access to wiring terminal connection
- differential pressure switch
- factory-installed high limit sensing thermocouples
- optional features include transition sections, stainless steel duct section, mechanical temperature control, special temperature code, outlet air thermostat and outlet air thermocouple
- available with T2D, T3A or T3B hazardous area temperature codes
- CSA C/US approved; GOST approved for global markets
RDFF - Commercial Flanged Duct Heater
The Ruffneck™ RDFF Commercial Flanged Duct Heater with finned tubular (Calrod® type*) elements is designed for use in comfort heating applications, such as make-up air heating, air pre-heating, air handling equipment, fan coils, terminal reheating, multi-zone reheating, heat pump auxiliary systems and return air heating. The finned tubular elements are constructed using a steel tube with a corrugated steel fin wrapped around it and brazed together, which increases the heat transfer surface of the element resulting in a lower operating temperature than the non-finned tubular element designs.
Features & Benefits At A Glance
- primary linear cutout, 160°F (71°C), 277/600 VAC, 25/10 AMP non-inductive
- secondary linear cutout, manual reset complete with backup magnetic contactor on units under 300V, 30 kW and less, 225°F (107°C), 277/600 VAC, 25/10 AMP non-inductive
- a wide range of optional auxiliary duct heater controls available either as factory installed on the duct heater or as an EEMAC rated control panel for wall mount, including bulb holders, silent contactors, SCR controllers, switches, magnetic contactors and more
- models range from 1-120kW and up to 600V, 3 phase
- frame fabricated from 16-gauge satin-coat steel
- approved for horizontal duct installation where maximum inlet air temperature does not exceed 25°C (77°F) and maximum rating does not exceed 120 kW
- CSA C/US & CE approved; GOST approved for global markets
RDFT - Commercial Flanged Duct Heater
The Ruffneck™ RDFT Commercial Flanged Duct Heater with non-finned tubular (Calrod® type*) elements is designed for use in comfort heating applications, such as make-up air heating, air pre-heating, air handling equipment, fan coils, terminal reheating, multi-zone reheating, heat pump auxiliary systems and return air heating. The non-finned incoloy® element design should be chosen where high humidity or slightly corrosive contaminants may be present in the air stream, as this type of element features higher corrosion-resistance than the finned element design. Unlike open coil designs, duct heaters fitted with tubular elements are not subject to hazards of electrical shock, which allows installation closer to a register or grille.
Features & Benefits At A Glance
- primary linear cutout, 160°F (71°C), 277/600 VAC, 25/10 AMP non-inductive
- secondary linear cutout, manual reset complete with backup magnetic contactor on units under 300V, 30 kW and less, 225°F (107°C), 277/600 VAC, 25/10 AMP non-inductive
- a wide range of optional auxiliary duct heater controls available either as factory installed on the duct heater or as an EEMAC rated control panel for wall mount, including bulb holders, silent contactors, SCR controllers, switches, magnetic contactors and more
- available for supply voltages up to 600 V, 3 phase
- frame fabricated from 16-gauge satin-coat steel
- CSA C/US & CE approved; GOST approved for global markets
RDIF - Commercial Insert Duct Heater
The Ruffneck™ RDIF Commercial Insert Duct Heater with finned tubular (Calrod® type*) elements is designed for use in comfort heating applications, such as make-up air heating, air pre-heating, air handling equipment, fan coils, terminal reheating, multi-zone reheating, heat pump auxiliary systems and return air heating. The finned tubular elements are constructed using a steel tube with a corrugated steel fin wrapped around it and brazed together, which increases the heat transfer surface of the element resulting in a lower operating temperature than the non-finned tubular element designs.
Features & Benefits At A Glance
- primary linear cutout, 160°F (71°C), 277/600 VAC, 25/10 AMP non-inductive
- secondary linear cutout, manual reset complete with backup magnetic contactor on units under 300V, 30 kW and less, 225°F (107°C), 277/600 VAC, 25/10 AMP non-inductive
- a wide range of optional auxiliary duct heater controls available either as factory installed on the duct heater or as an EEMAC rated control panel for wall mount, including bulb holders, silent contactors, SCR controllers, switches, magnetic contactors and more
- model range from 1-120kW and up to 600V, 3 phase
- frame fabricated from 16-gauge satin-coat steel
- approved for horizontal duct installation where maximum inlet air temperature does not exceed 25°C (77°F) and maximum rating does not exceed 120 kW
- CSA C/US & CE approved; GOST approved for global markets
RDIT - Commercial Insert Duct Heater
The Ruffneck™ RDIT Commercial Insert Duct Heater with non-finned tubular (Calrod® type*) elements is designed for use in comfort heating applications, such as make-up air heating, air pre-heating, air handling equipment, fan coils, terminal reheating, multi-zone reheating, heat pump auxiliary systems and return air heating. The non-finned incoloy® element design should be chosen where high humidity or slightly corrosive contaminants may be present in the air stream, as this type of element features higher corrosion-resistance than the finned element design. Unlike open coil designs, duct heaters fitted with tubular elements are not subject to hazards of electrical shock, which allows installation closer to a register or grille.
Features & Benefits At A Glance
- primary linear cutout, 160°F (71°C), 277/600 VAC, 25/10 AMP non-inductive
- secondary linear cutout, manual reset complete with backup magnetic contactor on units under 300V, 30 kW and less, 225°F (107°C), 277/600 VAC, 25/10 AMP non-inductive
- a wide range of optional auxiliary duct heater controls available either as factory installed on the duct heater or as an EEMAC rated control panel for wall mount, including bulb holders, silent contactors, SCR controllers, switches, magnetic contactors and more
- available for supply voltages up to 600 V, 3 phase
- frame fabricated from 16-gauge satin-coat steel
- CSA C/US & CE approved; GOST approved for global markets
AH - Advanced Horizontal Unit Heater
Ruffneck™ AH Series Advanced Horizontal Unit Heaters are designed for rugged industrial applications and can be used with a variety of heat transfer fluids such as steam, circulating hot water, and glycol heating systems or in liquid cooling applications, including flash stream condensers, lube oil coolers, pump seal coolers and more. Explosion-proof models suitable for hazardous locations are also available on custom order.
Features & Benefits At A Glance
- models range from 115-440V and 6,000-1,200,000 BTU/hr
- maximum operating pressure of 450 psi; maximum operating temperature of 650°F
- 1.5" NPT male inlet and outlet connections for reduced costs and easy installation; other connections available (check factory for availability)
- extruded aluminum louvers provide two-way directional control of discharge air
- bolt-together cabinet offers easy, convenient maintenance and cleaning without disturbing the mounting arrangement or electrical connections
- optional Heresite® coating available for demanding corrosive environments
- heavy gauge embossed, high performance fan blade for long life and improved air flow
- epoxy powder coated, split fan guard for safety and easy replacement
- UL-listed and/or CSA-approved motors; General Purpose or explosion-proof available
- all models are Canadian CRN approved
AV - Advanced Vertical Unit Heater
Ruffneck™ AV Series Advanced Vertical Throw Unit Heaters are designed for rugged industrial applications meeting the most demanding service and long life requirements. While perfect for steam, circulating hot water or glycol heating systems, these heaters are also suitable for a wide range of other heating fluids. In addition, they can be used for both space heating and liquid cooling applications. Explosion-proof models suitable for hazardous locations available on custom order.
Features & Benefits At A Glance
- models range from 115-440V and 6,000-1,200,000 BTU/hr
- maximum operating pressure and temperature rating of 450 psi and 650°F
- epoxy powder coated cabinet and nozzle; optional Heresite® coated or stainless steel cabinet available for demanding corrosive environments
- anodized extruded aluminum louver blades
- UL-listed and/or CSA-approved motors; general purpose or explosion-proof available
- all models are Canadian CRN approved
CR1 - Triton™ Corrosion-Resistant Washdown Unit Heater
The Ruffneck™ CR1 Triton™ Unit Heater is a corrosion-resistant washdown heater, designed for non-hazardous locations and applications using water pressure of less than 70 psi.
Features & Benefits At A Glance
- models range from 3kW to 39kW and 208v to 600V
- NEMA Type 4X construction for increased safety and protection against water penetration
- epoxy-coated fan blade and 16-gauge stainless steel cabinet for increased corrosion resistance
- custom configured stainless steel elements for improved heat distribution and corrosion protection
- optional built-in accessories for flexibility and reduced field installation costs
- stainless steel wall/ceiling mounting kit for flexible mounting options, which allow the heater to be mounted to a maximum of 30° from vertical
- stainless steel temperature high-limit for increased safety and reliability
- UL-listed Type 4X for coast guard and marine applications; GOST approved for global markets
CRE1 - Triton™ Corrosion-Resistant Unit Heater (European Certification)
The Ruffneck™ CRE1 Triton™ Unit Heater is a corrosion-resistant washdown heater designed for washdown applications in non-hazardous locations that use water pressure of less than 482 kPa.
Features & Benefits At A Glance
- models range from 2.5-40kW and 220-690V
- IP55 enclosure for increased safety and protection against water penetration
- epoxy-coated fan blade and 16-gauge stainless steel cabinet for increased corrosion resistance
- custom configured stainless steel spiral-finned heating elements for improved heat distribution and corrosion protection
- high velocity airflow
- optional built-in accessories for flexibility and reduced field installation costs
- stainless steel wall/ceiling mounting kit for flexible mounting options, which allow the heater to be mounted to a maximum of 30° from vertical
- stainless steel temperature high-limit for increased safety and reliability
- 120 volt controls for better contactor pull-in reliability
- UL-listed; CE and GOST approved for global markets
FE2 - Explosion-Proof Electric Air Unit Heater
The Ruffneck™ FE2 heaters are CE Marked & ATEX Approved to Directive 94/9/EC for use in hazardous locations. They are designed for dry indoor industrial applications such as oil refineries, petrochemical plants, pulp and paper mills, hazardous waste storage facilities, wastewater treatment plants, etc., where specific explosive gases or dusts maybe present. All FE2 heaters feature the VacuCore® liquid-to-air heat exchanger, which provides greater efficiency, faster warm-up and even heat distribution across the face of the exchanger. The entire core can be replaced easily and safely with a new core if required.
Features & Benefits At A Glance
- models range from 2.5-23.1kW and 220-440V
- heater core assembly is contained in a sturdy, epoxy-coated, 14-gauge steel cabinet, which also houses the motor and fan assembly
- adjustable louvers allow directional control of airflow
- aluminum fan blades with steel spider and hub; narrow gap, two-piece fan guard provides safety against all moving parts
- zinc-plated fasteners for corrosion protection
- three long-life, low watt density, high grade metal-sheathed elements
- optional built-in thermostat
- standard metric field connection
- CE/ATEX II2, Ex d IIA & IIB T3 Zones 1 & 2, GOST Certified
FX5 - Explosion-Proof Electric Air Unit Heater
The Ruffneck™ FX5 Explosion-Proof Electric Air Unit Heater is designed for the harshest industrial environments and intended for dry indoor industrial applications such as oil refineries, petrochemical plants, pulp and paper mills, grain elevators, hazardous waste storage facilities, wastewater treatment plants. This heater is ideal anywhere that specific explosive gases or dusts may be present.
Features & Benefits At A Glance
- models range from 3-35kW and 208-600V
- heater core assembly is contained in a sturdy, epoxy-coated, 14-gauge steel cabinet (optional Heresite® coating and stainless steel construction for corrosive environments available), which also houses the motor and fan assembly
- adjustable louvres allow directional control of airflow
- narrow gap, two-piece fan guard provides safety against all moving parts
- automatic reset bimetal high-limit; secondary ambient high-limit for added safety
- UL-certified and approved for the following Hazardous Locations Classifications: Class I, Divisions 1 & 2, Groups C & D; Class II, Division 1, Groups E, F & G and Class II, Division 2, Groups F & G. Class I, Zones 1 & 2, Groups IIA & IIB; Temperature code T3B 165°C (329°F)
FX5-SD - Explosion-Proof Electric Air Unit Heater
The FX5 Severe Duty (SD) is the next generation Ruffneck™ explosion-proof electric air heater, built for severe duty applications that can lead to accelerated wear of electrical components and damage to the heater core, including locations with fluctuating power quality, temporary power generation, high vibration, dirty or corrosive atmospheres or extended maintenance intervals.
Features & Benefits at a Glance
- Models range from 3 – 35 kW and 208 – 600V
- Shunt trip line power circuit breaker
- Redundant high limit protection
- 75 Amp industrial contactor
- Explosion-proof Arctic Duty motor
- Epoxy-coated, 14-gauge steel cabinet
- Optional Heresite® coating and stainless steel construction for corrosive environments
- CULUS certified and approved for the following Hazardous Locations Classifications: Class I, Divisions 1 & 2, Groups C & D; Class II, Division 1, Groups E, F & G and Class II, Division 2, Groups F & G. Class I, Zones 1 & 2, Groups IIA & IIB; Temperature code T3B 165°C (329°F)
FR - Frost Resistant Heat Exchanger Unit Heater
Ruffneck™ FR Heat Exchanger Unit Heaters are extra heavy duty (including heavy gauge steel construction) to meet the most demanding service and long life requirements for rugged industrial applications. The FR Series heaters are specifically designed for steam applications that may be subject to freezing conditions, and are of particular value for outdoor applications. They gain their resistance to frost damage through the use of rectangular top and bottom headers. Explosion-proof models suitable for hazardous locations are available on custom order.
Features & Benefits At A Glance
- models range from 115-575V; General Purpose or explosion-proof available
- rectangular top and bottom headers distort to a circular shape during accidental freeze-up without serious damage
- epoxy-coated 14-gauge steel cabinet construction
- plated capscrew fasteners; no sheet metal screws used
- steel construction core with tension-wound, close fitting aluminum fins
- highly resistant to corrosive agents, including hydrogen sulphide
- pressure ratings based on a nominal 5:1 safety factor; designed for pressures up to 100 psi; all units are 100% leak tested
- engineered for easy maintenance, all parts are easily removed; core is fully removable without disturbing heater mounting arrangement or electrical connections
- available in a single-pass configuration, best suited to steam and high flow rate liquid applications
- narrow-gap, epoxy coated fan guard
- optional Heresite® coating on core and/or cabinet for severe corrosive environments
- UL-listed/CSA-approved motors available
- all models are Canadian CRN approved and GOST approved for global markets
HP - High Pressure Heat Exchanger Unit Heater
Ruffneck™ HP Heat Exchanger Unit Heaters are extra heavy duty (including heavy gauge steel construction) to meet the most demanding service and long life requirements for rugged industrial applications, such as space heating and liquid cooling. The HP Series heaters are suitable for a wide range of heating fluids including steam, hot water, glycol, oil, etc.. Explosion-proof models suitable for hazardous locations are available on custom order.
Features & Benefits At A Glance
- models range from 115-575V; General Purpose or explosion-proof available
- semicircular headers to withstand high operating pressures for steam or liquid service
- epoxy coated 14-gauge steel cabinet construction
- plated capscrew fasteners; no sheet metal screws used
- steel construction core with tension-wound, close fitting aluminum fins
- highly resistant to corrosive agents, including hydrogen sulphide
- pressure ratings based on a nominal 5:1 safety factor; designed for pressures up to 400 psi; all units are 100% leak tested
- engineered for easy maintenance, all parts are easily removed; core is fully removable without disturbing heater mounting arrangement or electrical connections
- available in single-pass or multi-pass configurations (multi-pass for liquid service only)
- narrow-gap, epoxy coated fan guard
- optional Heresite® coating on core and/or cabinet for severe corrosive environments
- UL-listed/CSA-approved motors available
- all models are Canadian CRN approved and GOST approved for global markets
RGX - Heavy Duty Unit Heater
The Ruffneck™ RGX Heavy Duty Unit Heater is specifically engineered for heavy duty use in industrial environments, such as mine shafts, pulp & paper mills, hoist houses, welding shops, maintenance shops, sewage treatment plants, chemical plants and more. The heavy duty construction of this heater reduces the downtime and maintenance costs associated with standard design heaters.
Features & Benefits At A Glance
- models range from 15-50kW and 208-600V
- 40 and 50 kW units incorporate split loads (50%) for remotely controlled energy management systems
- factory-installed transformers, contactors and thermostats where specified
- individually adjustable air flow louvres
- factory-balanced aluminum fan blade
- NEMA 12 standard, full-sized control panel with hinged removable door
- epoxy coated 14-gauge steel cabinet for superior corrosion-resistance; optional stainless steel available
- fan delay in "ON" and "OFF" cycles
- "Fan Only" terminals for connection to remote switch
- ceiling mounting bracket supplied
- motor mounted outside the element bundle eliminates premature failure due to overheating and provides easy access for motor maintenance
- robust finned tubular sheathed elements with epoxy sealed terminals eliminate contamination from moisture and airborne impurities
- numerous optional factory installed features to meet specific customer requirements; numerous accessories for field installation available
- CSA C/US approved for horizontal and vertical air flow; CE approved; GOST approved for global markets
RGE - Regular Duty Unit Heater
The Ruffneck™ RGE Regular Duty Unit Heater is designed for use in regular duty industrial and commercial space heating applications. This heater is ideal for use in factories, warehouses, parking garages, boiler rooms, arenas, grandstands, mechanical rooms, shopping malls, display areas, commercial storefronts and more. This heater's robust design and top quality construction surpasses the standards of most competitive models.
Features & Benefits At A Glance
- models range from 2-40kW and 208-600V
- phosphate coated, epoxy painted 18-gauge steel cabinet
- field convertible from 1 to 3 phase
- tubular (Calrod® type)* heating elements
- individually adjustable air flow louvres
- permanently lubricated motors
- overheat protection
- ceiling mounting bracket supplied
- motors mounted outside element bundle
- numerous optional factory installed features to meet specific customer requirements, including optional thermostats and controls, and optional wall bracket
- numerous accessories for field installation available
- CSA C/US approved for horizontal air flow; CE approved; GOST approved for global markets
Exhaust Fans
EFX - Explosion-Proof Exhaust Fan
Specifically designed for both hazardous and general purpose industrial applications, the Ruffneck™ EFX Explosion-Proof Exhaust Fan is built for safety and durability. A number of optional features are available for customization, including Heresite® coating on all non-motor components, backdraft dampers and rain hoods.
Features & Benefits At A Glance
- models range from 115-575V
- spark-resistant aluminum fan blades for hazardous locations
- epoxy-coated steel construction
- fan guards conform to OSHA specifications
- all motors come complete with electrical junction box
- ships fully assembled for easy installation
- motors are CSA approved and/or UL-listed
Related products
Request a Quote
Fluid Technology, LLC
www.Fluid-Technology.com
Colorado 303-233-7400
Utah 801-268-0600
New Mexico 505-255-6565
Arizona 602-252-1726
PAGES
- Home
- Shop
- Brands
- Products
- Contact
- Terms & Conditions
PRODUCT CATEGORIES
- Regenerative Blowers
- Rotary Lobe (PD) Blowers
- Industrial Compressors
- Fans/Ventilation
- Air & Fluid Filters
- Industrial Heaters
- Valves
